Blank panel with spring clip

Without screw for fixing; stock available for 1U - 3U.

Blank panel

Re-enforcement folding edge; stock available for 1U - 3U.

Air vent panel

Re-enforcement folding edge; Arc edge design in which an acceptable gap is made to prevent damage in between the panels; for heat dissipation; stock available for 1U - 3U.

Flat shelf

Loading weight 50kgs; stock available for 450mm / 620mm / 720mm (depth).

Keyboard tray

Loading weight 40kgs; equipped with high quality imported ball bearing slide 18" slide; monitors are able to stand on the 2U keyboardtray.

Chassis support

For supporting equipment to be mounted on rack-mount angles to facilitate maintenance process; tailor made is available; stock available for 330mm / 450mm / 620mm (depth).

Drawer(open/closed)

Loading weight 40kgs; equipped with high quality imported ball bearing 18" slide; with or without lock type are available for selection; for storage of accessories or enclosed type for important documents.

2U LCD tray

Loading weight 40kgs; equipped with high quality imported ball bearing 18" slide; 17" LCD and keyboard can be fitted.

Movable tray

Loading weight 75kgs; equipped with high qualityimported ball bearing slide and airvent holes; can serve as table if no airvent holes.

6-way power bar

Input : 220V, 16A; color: grey or black.

12/18 way power bar

Input: 220V, 32A; color: grey or black; tailor made is available

Main distribution unit (MDU)

10 way IEC socket with safety retainers at rear as power source; american flat pin socket is also available for selection; input: 220V, 10Amp max; output: 5Amp fuse control; with luminous main on / off switch, individual fuse and legend plate for identification; size: 1U x 200mm depth.



Extractor

Used with movable tray and cable tray when cabling to avoid interception result in bad contact / disconnection / damage of cable.

Cable tie bar

Allow cable and power cord to turn horizontally and be accommodated properly.

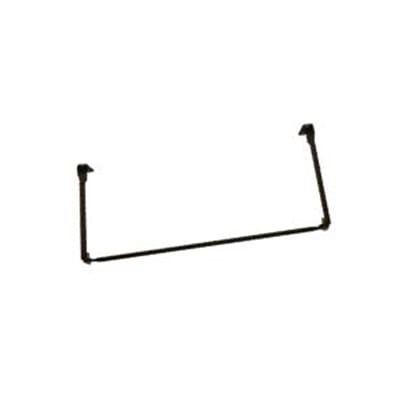

U-shape cable tie bar

Hoop panel

To assist in better cable arrangement for large quantity cable; 1U - 2U (H) is available.

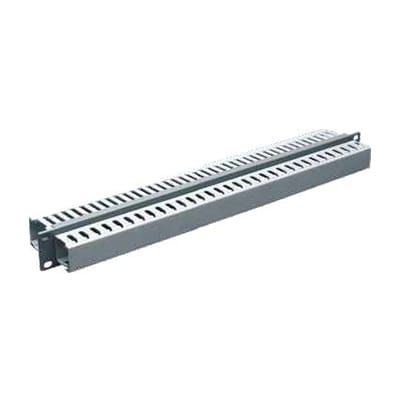

Panel with plastic cable trunking

For holding the patching cord / fibre when not in use.

Luminous strip

Vertically mounted at the rear for maintenance lighting;Sensor detected for switch.

2U Luminous panel

To be mounted in front of the rack for lighting purpose;Light source: filament PHILIPS 35W, 230AC.

Grounding copper bar

Specifications: 25mm (W) * 3mm (T).
